Tungsten Carbide Straight Flute Reamer (SED-CR-ST)

Quantity:



Inquire Add to Basket

Standard:
Non-Standard
Coating:
Uncoated
Precision:
H7
Alveolus Dentalis:
Straight
Handle Type:
Straight Shank
Usage Mode:
Machine Reamer
Model NO.:
SED-CR-ST
Material:
Tungsten Steel
Type:
Cylindrical Reamer
Shank:
Straight Shank
Flute:
Straight Flute
Flute Length:
100mm
Total Length:
150mm
Diameter:
4-20mm
Transport Package:
Plastic Tube
Specification:
1mm-12mm
Trademark:
EASYDRILL
Origin:
China
HS Code:
820770900
Production Capacity:
50000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

Solid Carbide Reamer Tungsten Carbide Straight flute Machine Reamer

Diameter: 4-20mm Overall Length: 50-150mm
Material: tungsten Carbide
Type: End Mill
Coating: AlTiN
Application: Hight speed cutting,stainless steel,alloy steel,die steel~HRC58 steel
Controlling Mode: CNC Tooling System
Suitable for: Cooper.Cast Iron.Carbon Steel.Mould Steel
HRC: 45/55/60/65
Precision: High Precision
Usage: General High Speed Cutting
Processing Type: Metal
TRANSPORT: Sea/Express/Air
Machine Type: Milling Machine.

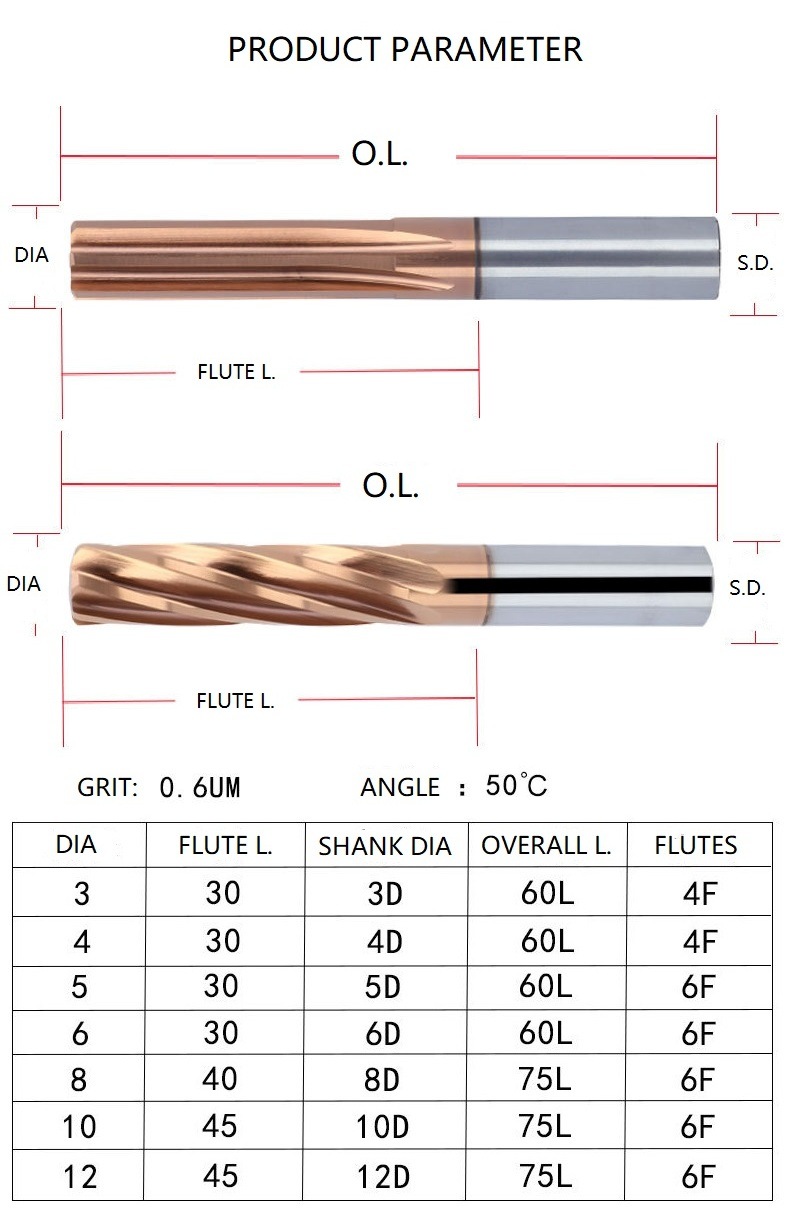

Customized professional manufacturers carbide spiral reamers(Standard Type)


Machining Range:AL5052,AL6063,AL6061,AL7075

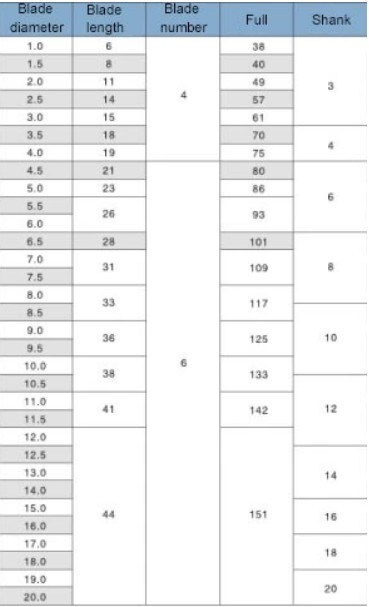

NO.	Diameter	Flute Length	Flute	O.AL	Shank Dia
	1	3	4	50	4
	1.5	4.5	4	50	4
	2	6	4	50	4
	2.5	7.5	4	50	4
	3	9	4	50	4
	4	12	4	50	4
	5	15	4	50	6
	6	18	4	50	6
	8	24	4	60	8
	10	30	4	75	10
	12	36	4	75	12
