Core Drill Bit
SDS Plus Shank
High Carbon Steel
Masonry Drilling, Concrete Drilling
Customized
DIN
Product Description

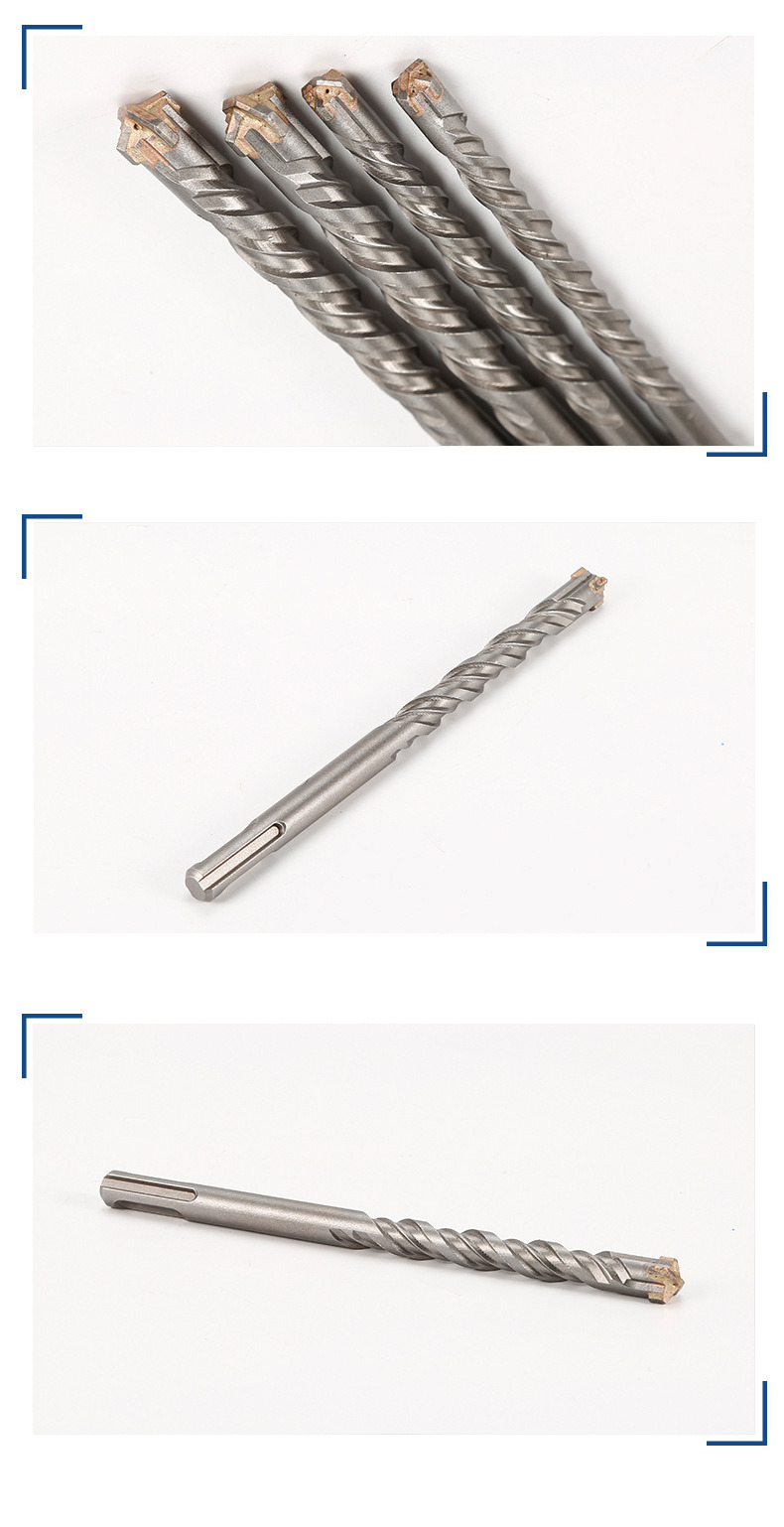

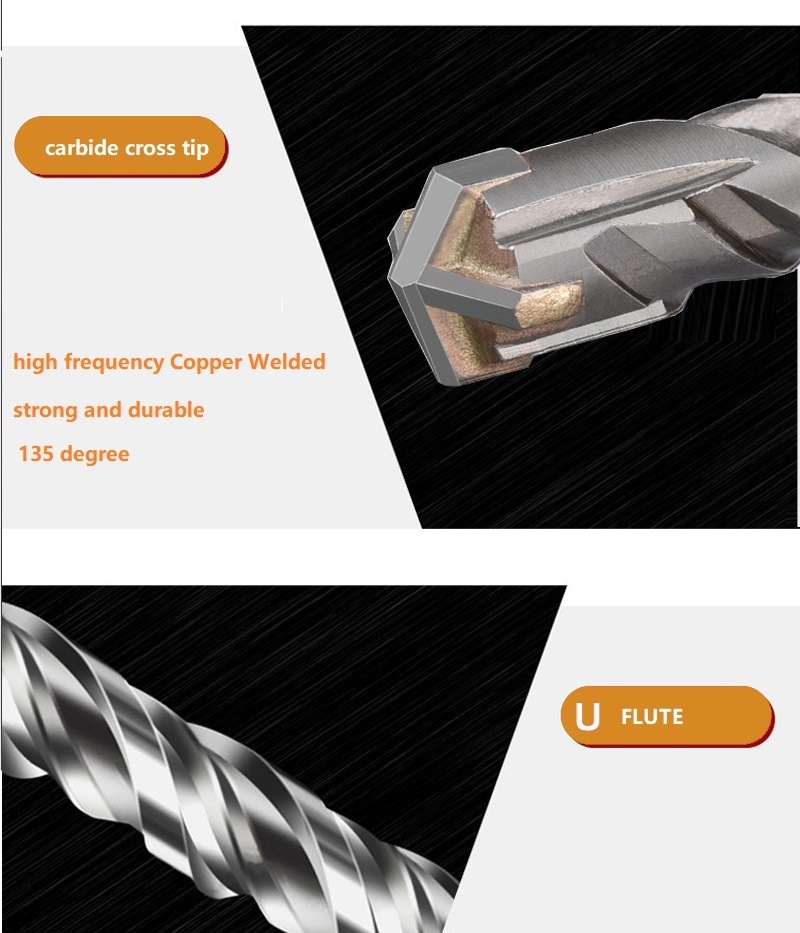

High performanace Cross Tips 40CR steel SDS Plus Shank Electric Hammer Drill Bits SDS drill bits

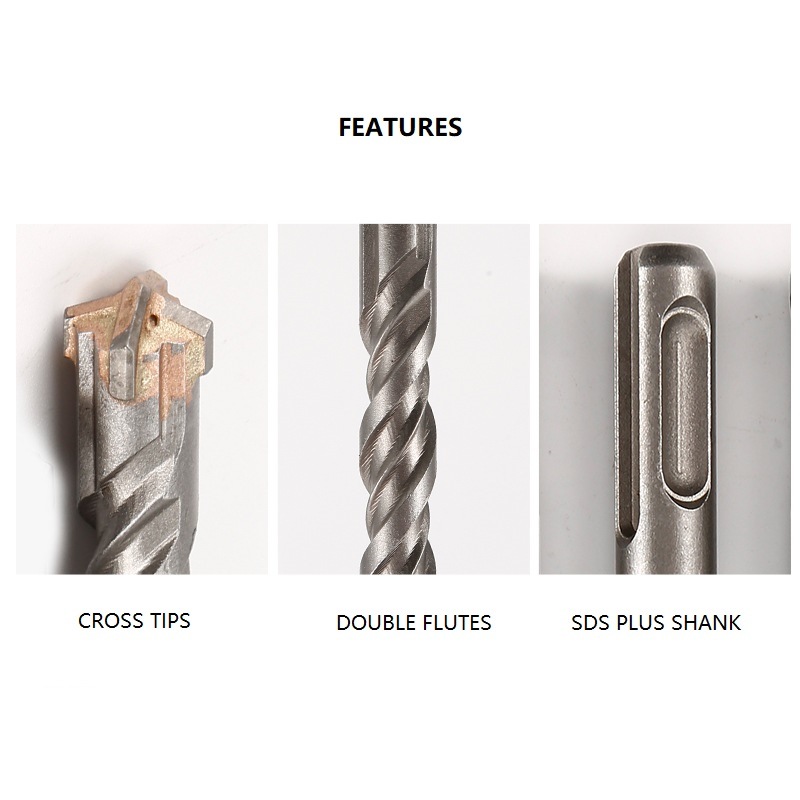

1.Material: YG8C carbide tip and 40Cr steel
2.heat treatment fully and sand blast
3.Flute: double flutes
4.designed for concrete, , Masonry and stone drilling.

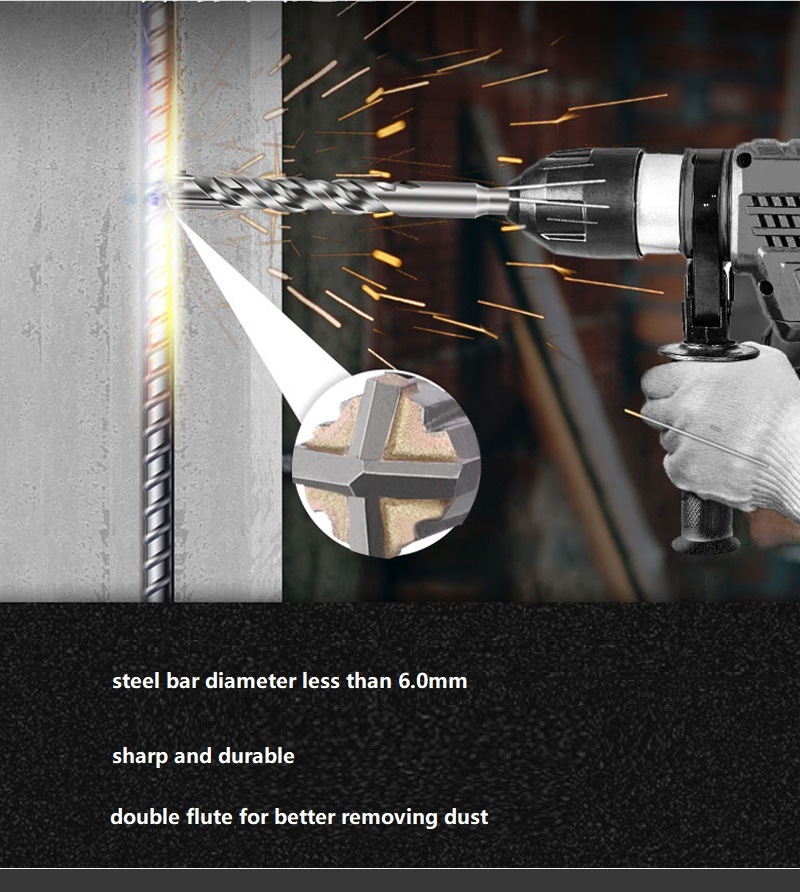

5.tip: "+" cross tips
6.good performance with long life.
7.Dia size: 4mm-30mm, O/A Length: 110mm-1200mm for choice.
8.Package: pvc bag,plastic tube,plastic hanger ,set case etc
9.Shank: SDS plus Shank.
| Diameter x Overall Length(mm) | Working Length(mm) | Diameter x Overall Length(mm) | Working Length(mm) |
| 4.0 x 110 | 45 | 14.0 x 160 | 80 |
| 4.0 x 160 | 95 | 14.0 x 200 | 120 |
| 5.0 x 110 | 45 | 14.0 x 260 | 180 |
| 5.0 x 160 | 95 | 14.0 x 300 | 220 |
| 5.0 x 210 | 147 | 14.0 x 460 | 380 |
| 5.0 x 260 | 147 | 14.0 x 600 | 520 |
| 5.0 x 310 | 247 | 14.0 x 1000 | 920 |
| 6.0 x 110 | 45 | 15.0 x 160 | 80 |
| 6.0 x 160 | 97 | 15.0 x 200 | 120 |
| 6.0 x 210 | 147 | 15.0 x 260 | 180 |
| 6.0 x 260 | 197 | 15.0 x 460 | 380 |
| 6.0 x 460 | 397 | 16.0 x 160 | 80 |
| 7.0 x 110 | 45 | 16.0 x 200 | 120 |
| 7.0 x 160 | 97 | 16.0 x 250 | 180 |
| 7.0 x 210 | 147 | 16.0 x 300 | 230 |
| 7.0 x 260 | 147 | 16.0 x 460 | 380 |
| 8.0 x 110 | 45 | 16.0 x 600 | 520 |
| 8.0 x 160 | 97 | 16.0 x 800 | 720 |
| 8.0 x 210 | 147 | 16.0 x 1000 | 920 |
| 8.0 x 260 | 197 | 17.0 x 200 | 120 |
| 8.0 x 310 | 247 | 18.0 x 200 | 120 |
| 8.0 x 460 | 397 | 18.0 x 250 | 175 |
| 8.0 x 610 | 545 | 18.0 x 300 | 220 |
| 9.0 x 160 | 97 | 18.0 x 460 | 380 |
| 9.0 x 210 | 147 | 18.0 x 600 | 520 |
| 10.0 x 110 | 45 | 18.0 x 1000 | 920 |
| 10.0 x 160 | 97 | 19.0 x 200 | 120 |
| 10.0 x 210 | 147 | 19.0 x 460 | 380 |
| 10.0 x 260 | 197 | 20.0 x 200 | 120 |
| 10.0 x 310 | 247 | 20.0 x 300 | 220 |
| 10.0 x 360 | 297 | 20.0 x 460 | 380 |
| 10.0 x 460 | 397 | 20.0 x 600 | 520 |
| 10.0 x 600 | 537 | 20.0 x 1000 | 920 |
| 10.0 x 1000 | 937 | 22.0 x 250 | 175 |
| 11.0 x 160 | 95 | 22.0 x 450 | 370 |
| 11.0 x 210 | 145 | 22.0 x 600 | 520 |
| 11.0 x 260 | 195 | 22.0 x 1000 | 920 |
| 11.0 x 300 | 235 | 24.0 x 250 | 175 |
| 12.0 x 160 | 85 | 24.0 x 450 | 370 |
| 12.0 x 210 | 135 | 25.0 x 250 | 175 |
| 12.0 x 260 | 185 | 25.0 x 450 | 370 |
| 12.0 x 310 | 235 | 25.0 x 600 | 520 |
| 12.0 x 460 | 385 | 25.0 x 1000 | 920 |
| 12.0 x 600 | 525 | 26.0 x 250 | 175 |
| 12.0 x 1000 | 920 | 26.0 x 450 | 370 |
| 13.0 x 160 | 80 | 28.0 x 450 | 370 |
| 13.0 x 210 | 130 | 30.0 x 460 | 380 |
| 13.0 x 260 | 180 | ||
| 13.0 x 300 | 220 | ||
| 13.0 x 460 | 380 |
