Core Drill Bit
Hexagon Shank
High Carbon Steel
Wood Drilling
Customized
DIN
Product Description

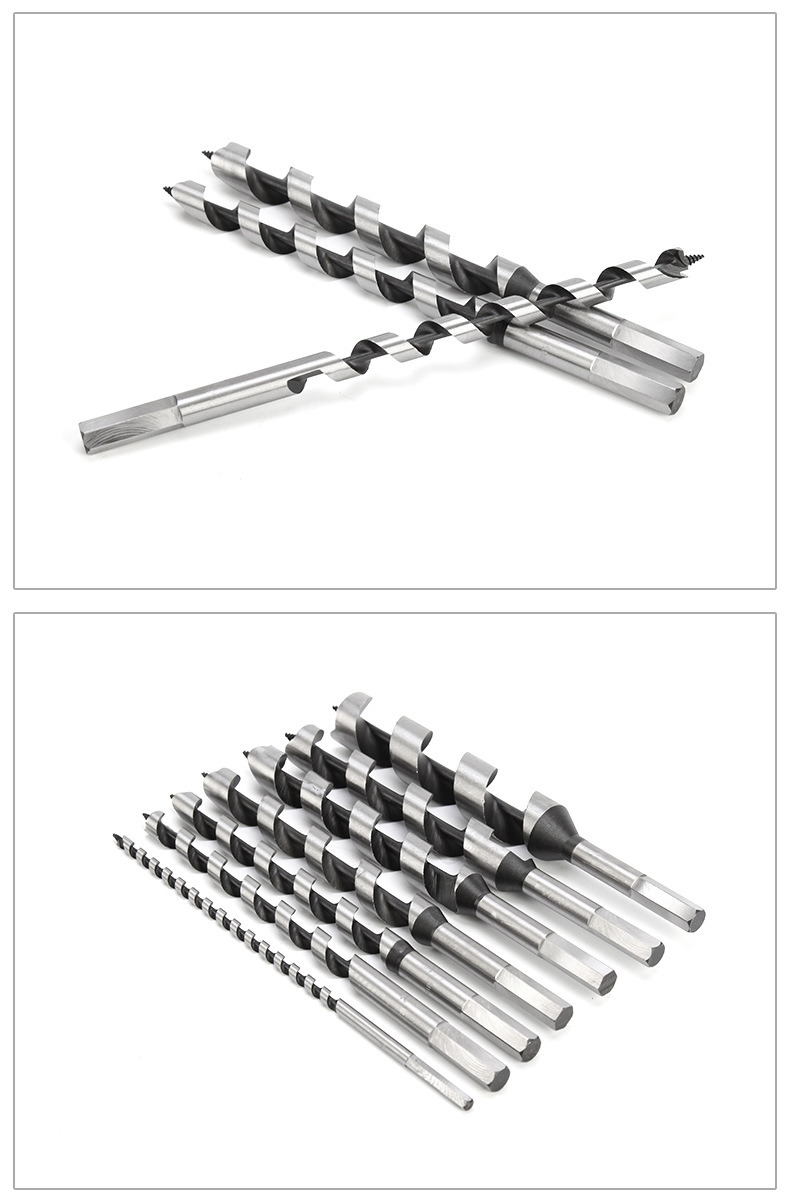

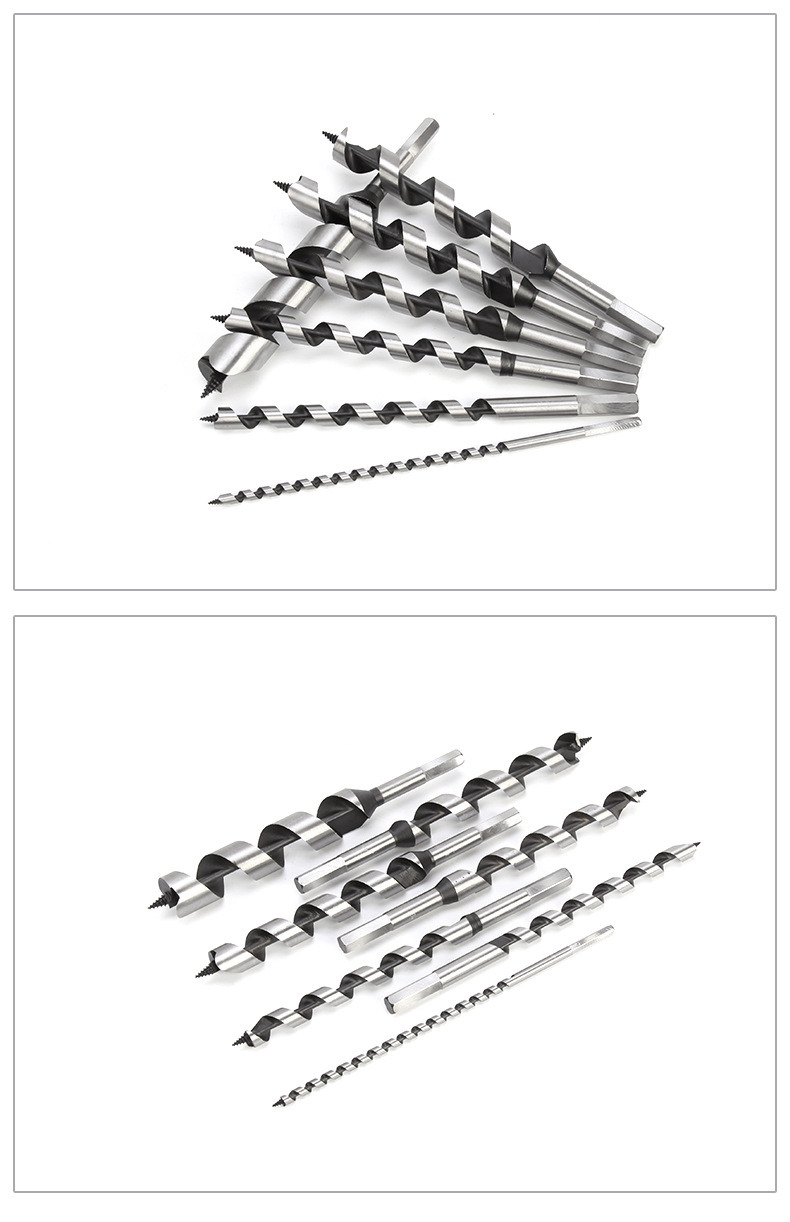

Hex Shank Wood Auger Drill Bits
For precise drilling in soft and hard wood, large section beam, chipboard and plywood
1. Cutting edge: Precision ground for long life
2. Full length heat treatment: Guards against bending bit in heavy-duty applications
3. Hex shank: Prevents spinning in drill chuck
4. Screw threaded center point: For precisely locating the bit and for fast self-starting of the hole
5. Single outer cutting spur: For splinter free drilling and clean hole
6. Wide lands: Keep bit straight as it bores through the hole
7.Diameter Size: 6mm-40mm.
DIA.(mm) | Dia(INCH) | OVERALL LENGTH(mm) | O.A lENGTH(inch) |
| 6 | 1/4" | 230 | 9" |
| 6 | 1/4" | 460 | 18" |
| 8 | 5/16" | 230 | 9" |
| 8 | 5/16" | 250 | 10" |
| 8 | 5/16" | 460 | 18" |
| 10 | 3/8" | 230 | 9" |
| 10 | 3/8" | 250 | 10" |
| 10 | 3/8" | 460 | 18" |
| 10 | 3/8" | 500 | 20" |
| 10 | 3/8" | 600 | 24" |
| 12 | 1/2" | 230 | 9" |
| 12 | 1/2" | 250 | 10" |
| 12 | 1/2" | 460 | 18" |
| 12 | 1/2" | 500 | 20" |
| 12 | 1/2" | 600 | 24" |
| 14 | 9/16" | 230 | 9" |
| 14 | 9/16" | 250 | 10" |
| 14 | 9/16" | 460 | 18" |
| 14 | 9/16" | 500 | 20" |
| 14 | 9/16" | 600 | 24" |
| 16 | 5/8" | 230 | 9" |
| 16 | 5/8" | 250 | 10" |
| 16 | 5/8" | 460 | 18" |
| 16 | 5/8" | 500 | 20" |
| 16 | 5/8" | 600 | 18" |
| 18 | 11/16" | 230 | 9" |
| 18 | 11/16" | 250 | 10" |
| 18 | 11/16" | 460 | 18" |
| 18 | 11/16" | 500 | 20" |
| 18 | 11/16" | 600 | 24" |
| 20 | 3/4" | 230 | 9" |
| 20 | 3/4" | 250 | 10" |
| 20 | 3/4" | 460 | 18" |
| 20 | 3/4" | 500 | 20" |
| 20 | 3/4" | 600 | 24" |
| 22 | 7/8" | 230 | 9" |
| 22 | 7/8" | 250 | 10" |
| 22 | 7/8" | 460 | 18" |
| 22 | 7/8" | 500 | 20" |
| 22 | 7/8" | 600 | 24" |
| 24 | 15/16" | 230 | 9" |
| 24 | 15/16" | 250 | 10" |
| 24 | 15/16" | 460 | 18" |
| 24 | 15/16" | 500 | 20" |
| 24 | 15/16" | 600 | 24" |
| 26 | 1" | 230 | 9" |
| 26 | 1" | 250 | 10" |
| 26 | 1" | 460 | 18" |
| 26 | 1" | 500 | 20" |
| 26 | 1" | 600 | 24" |
| 28 | 1-1/8" | 230 | 9" |
| 28 | 1-1/8" | 250 | 10" |
| 28 | 1-1/8" | 460 | 18" |
| 28 | 1-1/8" | 500 | 20" |
| 28 | 1-1/8" | 600 | 24" |
| 30 | 1-3/16" | 230 | 9" |
| 30 | 1-3/16" | 250 | 10" |
| 30 | 1-3/16" | 460 | 18" |
| 30 | 1-3/16" | 500 | 20" |
| 30 | 1-3/16" | 600 | 24" |
| 32 | 1-1/4" | 230 | 9" |
| 32 | 1-1/4" | 250 | 10" |
| 32 | 1-1/4" | 460 | 18" |
| 32 | 1-1/4" | 500 | 20" |
| 32 | 1-1/4" | 600 | 24" |
| 34 | 1-5/16" | 230 | 9" |
| 34 | 1-5/16" | 250 | 10" |
| 34 | 1-5/16" | 460 | 18" |
| 34 | 1-5/16" | 500 | 20" |
| 34 | 1-5/16" | 600 | 24" |
| 36 | 1-7/16" | 230 | 9" |
| 36 | 1-7/16" | 250 | 10" |
| 36 | 1-7/16" | 460 | 18" |
| 36 | 1-7/16" | 500 | 20" |
| 36 | 1-7/16" | 600 | 24" |
| 38 | 1-1/2" | 230 | 9" |
| 38 | 1-1/2" | 250 | 10" |
| 38 | 1-1/2" | 460 | 18" |
| 38 | 1-1/2" | 500 | 20" |
| 38 | 1-1/2" | 600 | 24" |
