Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS)

Quantity:
Inquire Add to Basket

  • Customized

  • DIN

  • Core Drill Bit

  • Tungsten Carbide

  • Wall Drilling

  • SDS Plus Shank

  • SED-THS-TS

  • 30mm-135mm

  • 107mm-550mm

  • M16

  • 100PCS

  • Blister Card, Hanging Card, Set Case

  • SGS, ISO9001

  • EASYDRILL

  • China

  • 820750900

  • 30, 000PCS/Month

  • Available | Customized Request

Product Description

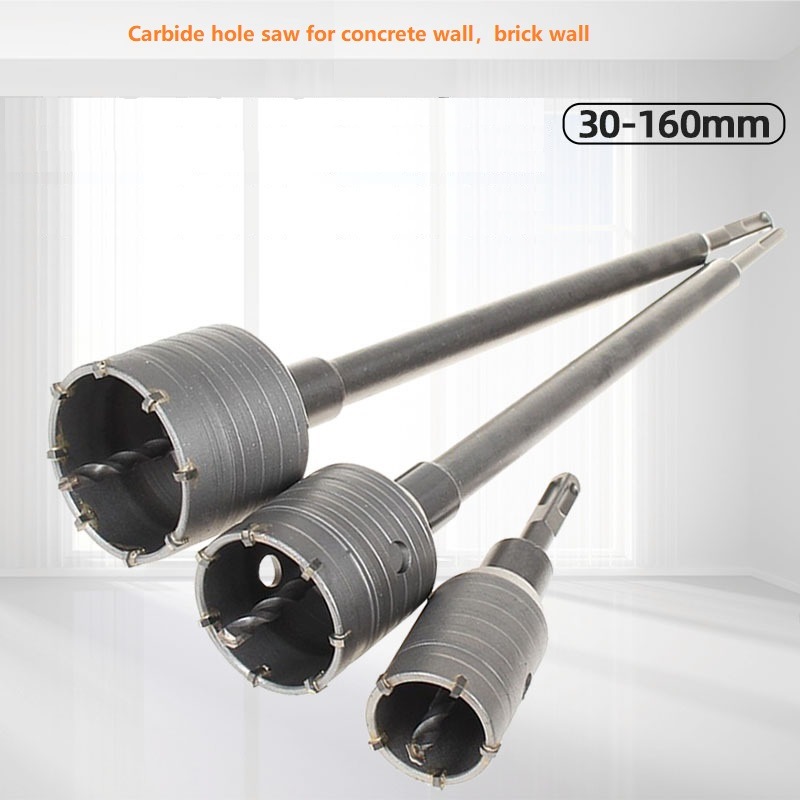

Heavy duty Tungsten Carbide tip Brazed TCT Hole Saw for wall cutting


1. sds plus shank Hole cutter for concrete, , Masonry and stone drilling.
2. material:carbon steel body,tungsten carbide tips:YG8C.40CR steel shank.
3.Dia sizes:60mm,65mm,70mm,80mm,85mm,100mm,120mm etc for choices.
4.widely used in hard material in construction and installation industries including concrete, stone, masonry and bricks.

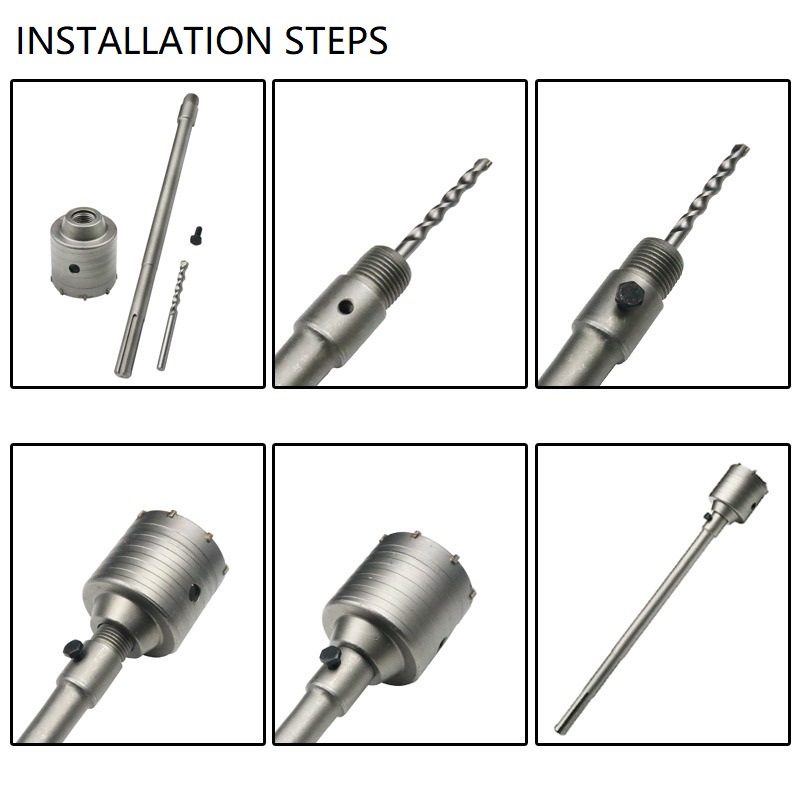

5.Interchangeable SDS-plus & hex shank threaded adapter (M16).
6.Deep drilling by using extension shank.
7.To be used on rotary and hammer drills.

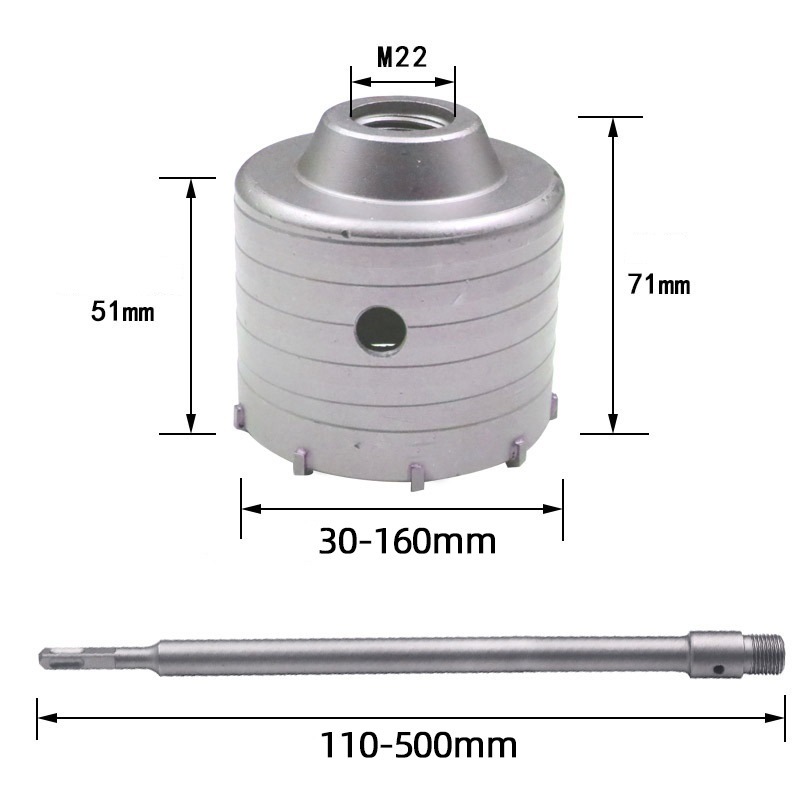

8.Dia. 25-180mm (1"-7") Working Length: 107-550mm

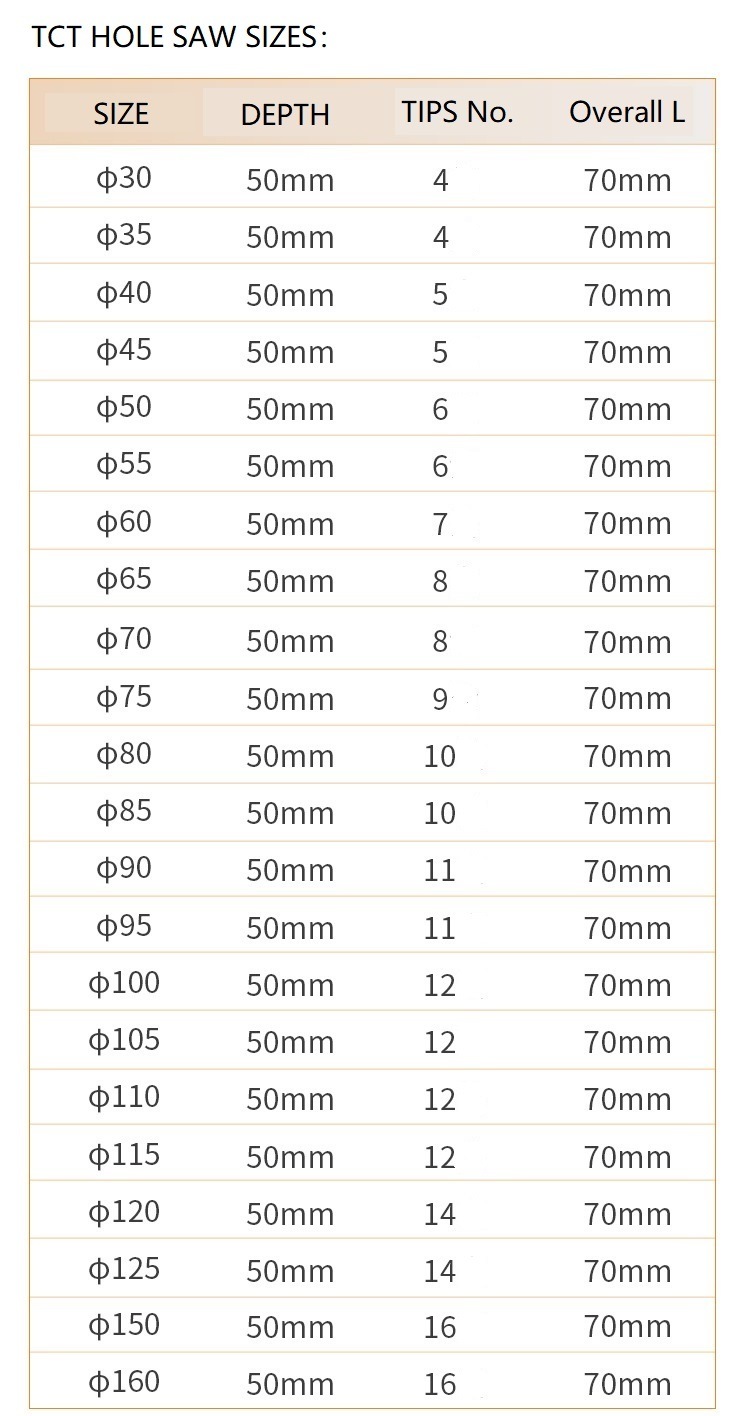

Dia. Length TOOTH
mm (INCH) PCS
30 2 4
35 2 4
40 2 5
45 2 5
50 2 5or6
55 2 6
60 2 6or7
65 2 6or7or8
68 2 6or7or9
70 2 7or8or9
75 2 7or8or9
80 2 8or9or10
82 2 8or9or10
85 2 8or9or10
90 2 8or9-10-11
95 2 10or11
100 2 10 or 11-12
105 2 11 or 11-12
110 2 12
115 2 13
120 2 13
125 2 13
130 2 13
135 2 13

Size of Adaptor/Connecting Rod For Hammer Core Hole Saw

SIZE
MM
22*160
22*200
22*250
22*300
22*350
22*400
22*450
22*500
22*600
22*700
22*800
22*1000
25*100
Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS) Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS) Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS) Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS) Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS) Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS) Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS)
Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS)
Heavy Duty Tungsten Carbide Tip Tct Hole Saw for Wall Cutting (SED-THS-TS)
Previous:
Next:
Hole saw Saw Cutter
PRODUCT INQUIRY

RELATED PRODUCTS

ABOUT EASYDRILL

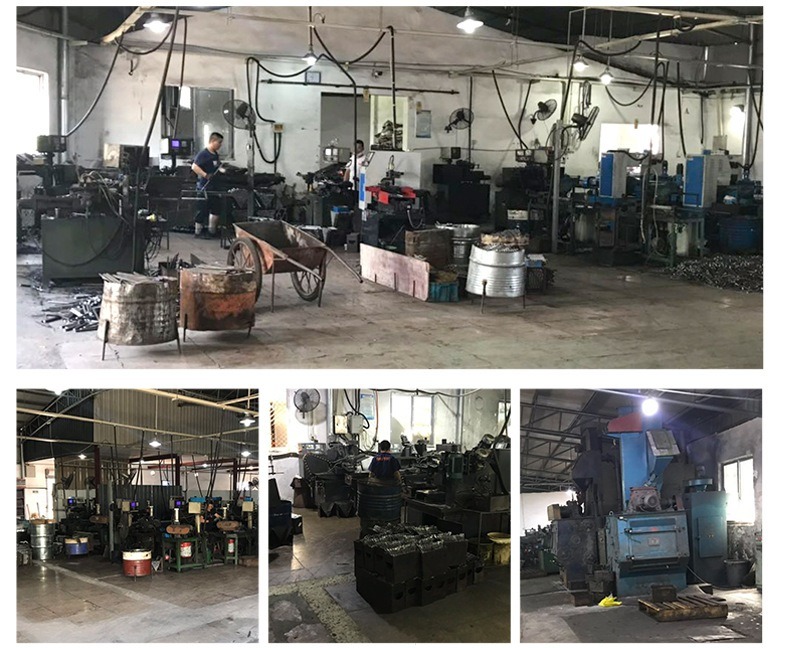

Leading China manufacturer with 20+years of cutting tools and drill bits,hole saws,power tools accessories experience.
