HSS Taper Drills HSS Drill Bit Black Oxide Milled Taper Shank HSS Twist Drill (SED-HTM)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Type:
Twist Drill Bit
Material:
High Speed Steel
Usage:
Metal Drilling
Shank:
Morse Taper Shank
Model NO.:
SED-HTM
Manufacturing Art:
Milled
Surface Finish:
Black
Min Qty:
100PCS Each Size
Packing:
Paper Box
Transport Package:
Oil Paper, Plastic Tube, Set Cases etc
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
40, 000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

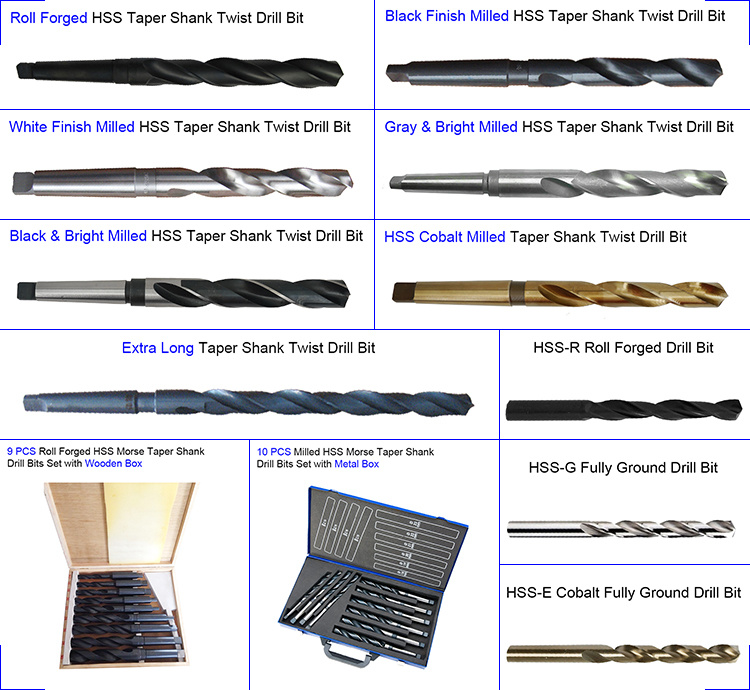

HSS taper drill twist drills black oxide Milled Taper Shank HSS Drill bit

Material: HSS 4241, 4341, 9341, M2, M35
Size: 6.0-100.0mm
Process: Milled
Surface: White, Black, White Edge, Tin-Coated
DIN345 Taper Shank Drill Bit

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled

2. Standard: Strictly as per DIN345 specification requested.

3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.

4. 118Degree or 135 degree.

5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.

D	L	l
MM	MM	MM
6	225	145
6.1-6.7	230	150
6.8-7.6	235	155
7.7-8.6	240	160
8.7-9.5	245	165
9.6-10.6	250	170
10.7-11.8	255	175
11.9-13.2	260	180
13.3-14	265	185
14.25-15	290	190
15.25-16	295	195
16.25-17	300	200
17.25-18	305	205
18.25-19	310	210
19.25-20	320	220
20.25-21	330	230
21.25-22.25	335	235
22.5-23	340	240
23.25-23.5	360	240

Drill Drills Drill Bit
