| Quantity: | |
|---|---|
Customized
DIN
Jobber-length
Twist Drill Bit
High Speed Steel

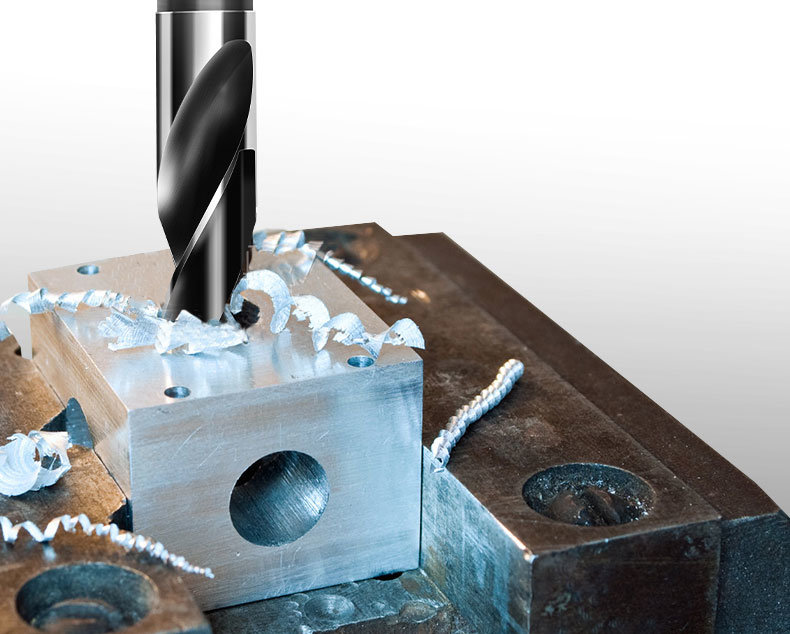

Metal Drilling
SED-HTMB
10.5mm-20mm
Fully Ground or Forged
1000PCS/Size
PVC Bag,Setcase,Plastic Box,Metal Box
Black Oxide
PVC Bag, Blister Card, Plastic Box, Metal Box etc
ISO9001, SGS, CE
EASYDRILL
China
820750900
200, 000PCS/Month
US$ 10/Piece 1 Piece(Min.Order) | Request Sample
Product Description
| Procuct Name | Black Finish Milled DIN345 Morse HSS Taper Shank Twist Drills for Metal Drilling |

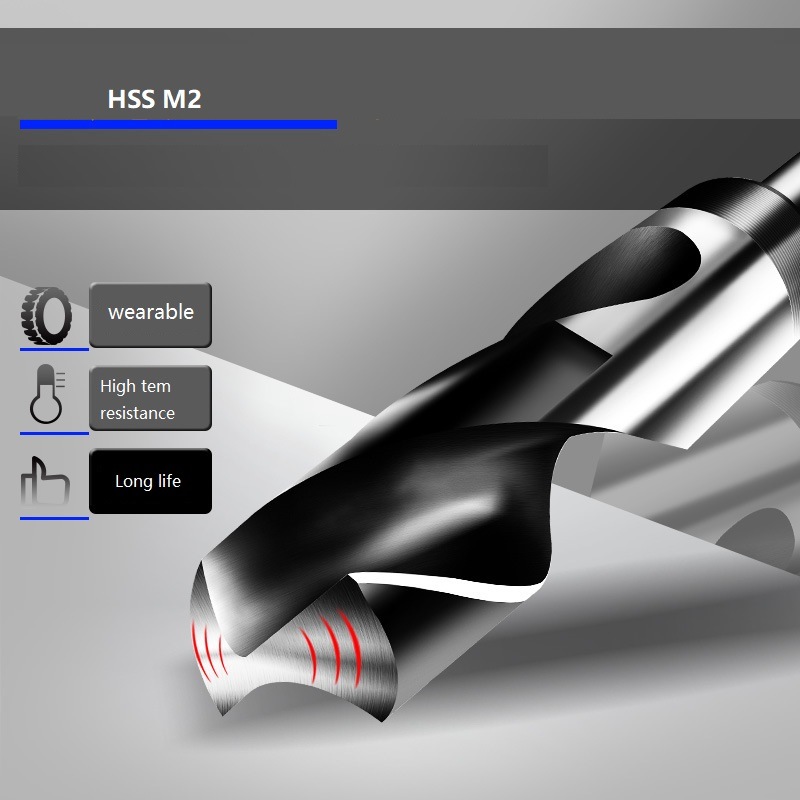

| Material | HSS 4241,4341,6542-M2 (Cobalt 5% M35 is Available) |
| Process | Milled (Roll Forged is Available) |
| Standard | DIN345 (ANSI,DIN341, DIN1870 are Also Available) |
| MT No. | No.1 to No.6 |
| Size | 7.5mm-100mm and 3/8" to 4" |
| Flute Type | Type N, Right Hand Cutting |
| Point Angle | 118 Degree (135 Degree Split Point, Thinning Point are Available) |
| Surface Finish | Black Oxide (Black & White, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available) |
| Package | One Piece in Paper Box,Plastic Box,Wood Box. |
| Features | 1,Precise dimension,long life and high efficiency. 2,High-speed steel (HSS) provides hardness for wear resistance 3,Black oxide finish reduces wear while promoting chip and coolant flow on ferrous materials 4,Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge 5,Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters 6,When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging 7,Designed to perform in a broad range of materials in the iron and steel families 8,Spiral flutes are constructed with a higher flute angle to remove chips more easily. |
