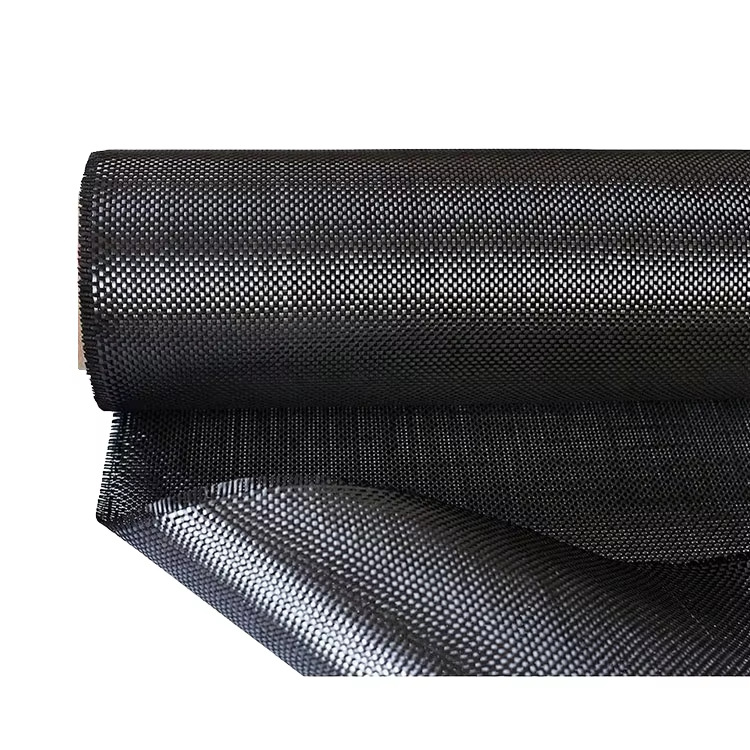

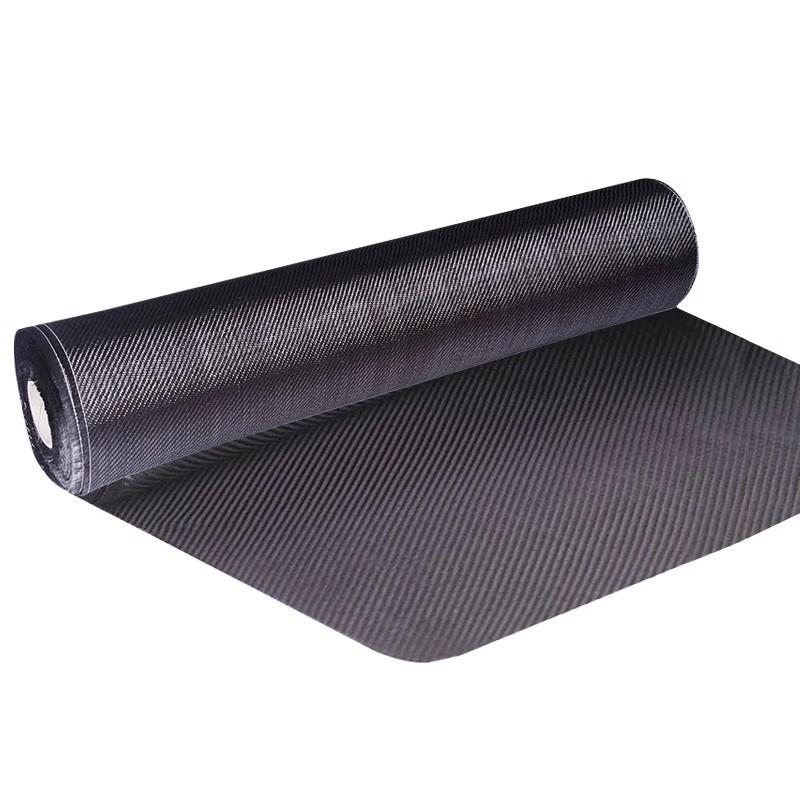

Bidirectional Twill Weave 240g Carbon Fiber Cloth

Our Bidirectional Twill Weave 240g Carbon Fiber Cloth is a high-performance composite material, engineered with fine carbon fiber yarns and a 0°/90° bidirectional twill weave, offering exceptional strength, lightweight properties, and versatility for various composite manufacturing projects.
Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Overview

Crafted from high-grade carbon fiber yarns, this carbon fiber cloth features a classic twill weave pattern and a uniform density of 240g/m². The bidirectional (0°/90°) design ensures equal strength in both warp and weft directions, making it ideal for creating lightweight, high-rigidity composite parts. It boasts excellent drapability, easy impregnation with resins, and good dimensional stability, suitable for hand lay-up, vacuum infusion, and other composite molding processes.

Key Specifications

Specification
Details
Weave Type
Bidirectional Twill Weave (0°/90°)
Density
240g/m² (grams per square meter)
Yarn Type
3K Carbon Fiber Yarn (optional 1K/6K)
Thickness
0.3mm-0.4mm (varies by weave tightness)
Width
1000mm-1500mm (standard), custom widths available
Key Features
Bidirectional strength, twill weave, lightweight, good drapability, resin-compatible

Core Advantages

  • Optimal Density: 240g/m² balance of lightweight and strength, perfect for thin-walled composite parts

  • Bidirectional Strength: 0°/90° weave ensures uniform strength in both directions, ideal for load-bearing applications

  • Good Drapability: Twill weave design allows easy shaping into complex curved or irregular parts

  • Resin Compatible: Easily impregnated with epoxy, polyester, and vinyl ester resins for composite manufacturing

  • Durable: High tensile strength, corrosion-resistant, and UV-stable, suitable for indoor and outdoor use

Applications

Ideal for aerospace components, automotive parts, marine equipment, sports equipment (bikes, drones), DIY composite projects, and any application requiring lightweight, high-strength composite materials.
