5PCS Drills Set Carbide Straight Tip Concrete Drill Bits Set (SED-CDBS5)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Type:
Core Drill Bit
Material:
High Carbon Steel
Usage:
Masonry Drilling, Concrete Drilling
Shank:
Round Shank
Model NO.:
SED-CDBS5
Application:
Cocrete Drilling
Color:
Black Flute and White Body
Tip:
Carbide Tip
Min Qty:
1000PCS/Size
Transport Package:
PVC Bag, Plastic Tube, or Box
Specification:
ISO9001, SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
100, 000PCS/Month
Samples:
US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

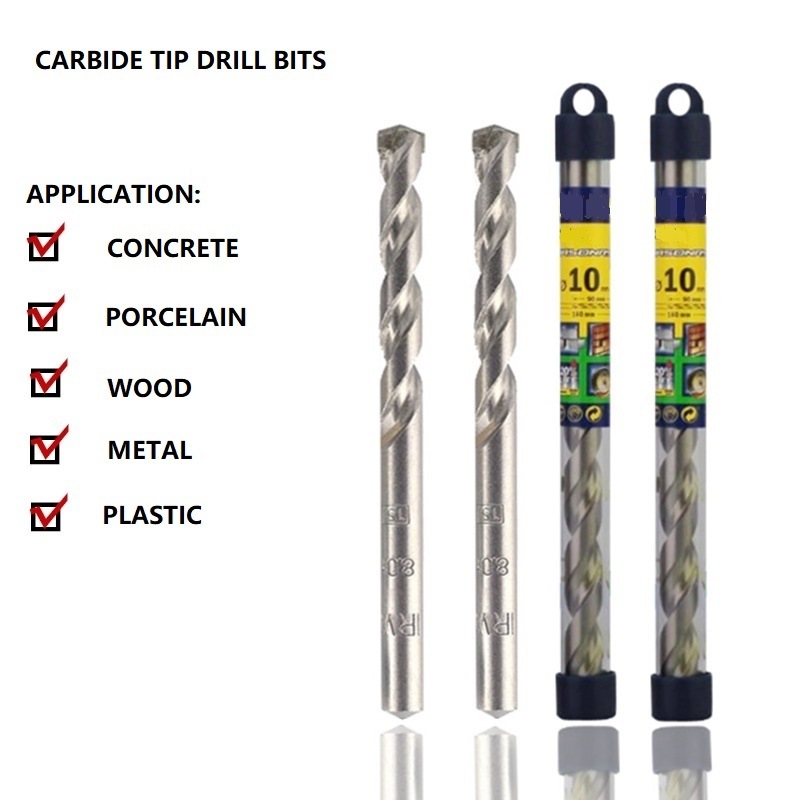

Carbide Tip round shank straight tip concrete Drill Bits

1.Concrete drill bit is machined from high carbon steel with carbide tipped cutting edge.
2.Black groove, edge polished.
3.High quality for the professionals.
4.For drilling in concrete, reinforced concrete, brick, block and masonry, etc.
5.Other surface treatment are available: Galvanized finish, Nickel Plated,Chrome coated, Black finish, Sandblasted finish.
6.sizes over 11mm or 7/16" are with reduced shank.
7.concrete drill bits set are also available .

Diameter		Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall
SIZE	SIZE	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length
mm	Inch	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3	1/8	30	60
4	5/32	40	75
5	3/16	50	85	85	150
6	15/64	60	100	85	150	135	200	200	300	300	400	450	600
6.5	1/4	60	100	85	150	135	200	200	300	300	400	450	600
7	9/32	60	100	85	150	135	200	200	300	300	400	450	600
8	5/16	80	120	85	150	135	200	200	300	300	400	450	600
9	11/32	80	120	85	150	135	200	200	300	300	400	450	600
10	3/8	80	120	85	150	135	200	200	300	300	400	450	600
11	7/16	85	150			135	200	200	300	300	400	450	600
12	15/32	85	150			135	200	200	300	300	400	450	600
13	1/2	95	150			135	200	200	300	300	400	450	600
14	9/16	95	150			135	200	200	300	300	400	450	600
15	19/32	95	150			135	200	200	300	300	400	450	600
16	5/8	95	150			135	200	200	300	300	400	450	600
17	11/16	95	150			135	200	200	300	300	400	450	600
18	11/16	105	160			135	200	200	300	300	400	450	600
19	3/4	105	160			135	200	200	300	300	400	450	600
20	25/32	105	160			135	200	200	300	300	400	450	600
22	7/8	105	160			135	200	200	300	300	400	450	600
24	15/16	105	160			135	200	200	300	300	400	450	600
25	1	105	160			135	200	200	300	300	400	450	600
