10PCS Tungsten Carbide Rotary Burrs Set in Plastic Box (SED-RB-S10)

Quantity:



Inquire Add to Basket

Type:
Abrasive Grinding Head
Materials:
Alloy
Certification:
ISO, GS, CE
Applications:
Electric Grinder
Standard:
Standard
Set:
10PCS/Box
Model NO.:
SED-RB-S10
Advantage:
Double Cuts
Min Qty:
100sets
Package:
Plastic Box
Shank Dia:
6mm
Transport Package:
Plastic Tube or as Per Request
Specification:
6-16mm
Trademark:
EASYDRILL
Origin:
China
HS Code:
82075090
Production Capacity:
50000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

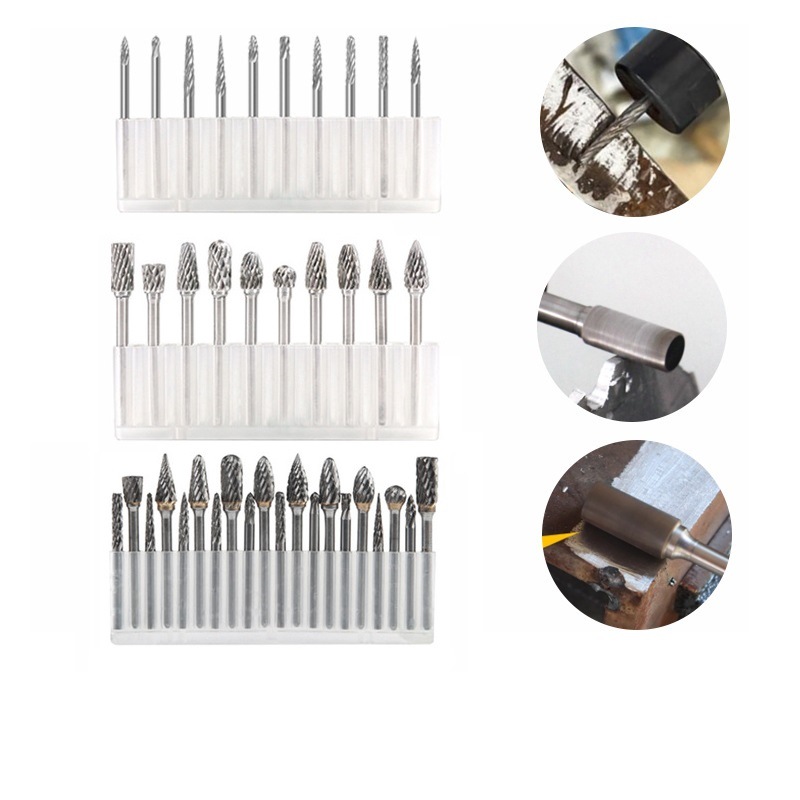

10pcs Tungsten carbide rotary burrs set in plastic box

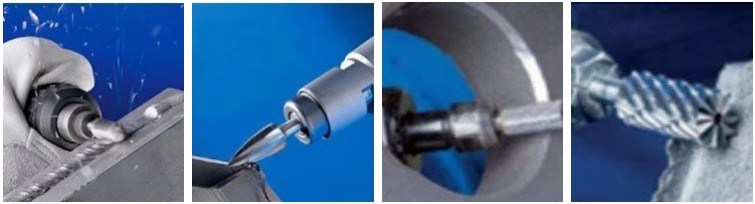

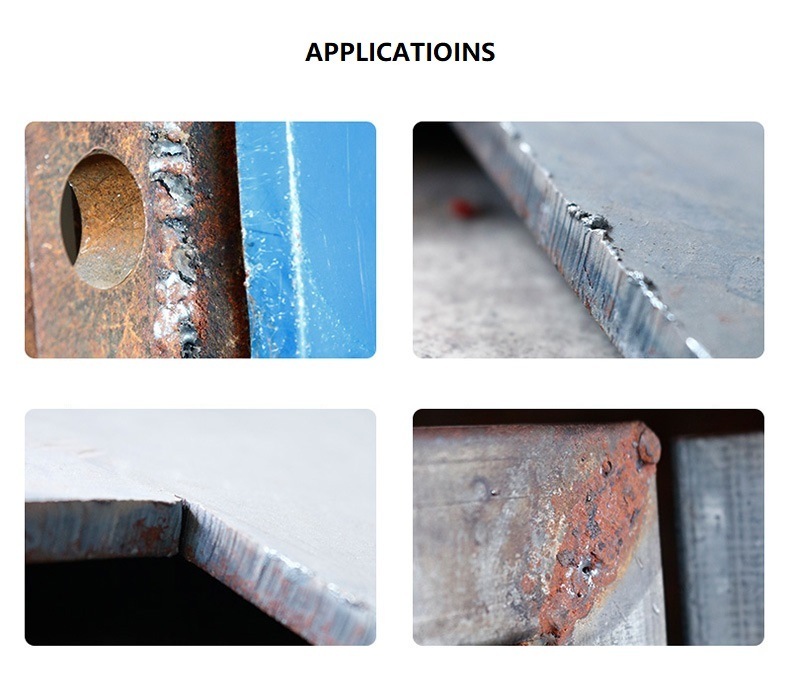

Product Application
widely using on all kinds industrial department ,like machine,cars,vessel,Craft sculpture etc.
1.Fine finishing on all kinds of metal mould cavity,like shoes mould.
2.working on all kinds of metal and nonmetal's Craft sculpture.
3.cleaning those trimming,burrs and weld line on casting ,forge and weldment part.

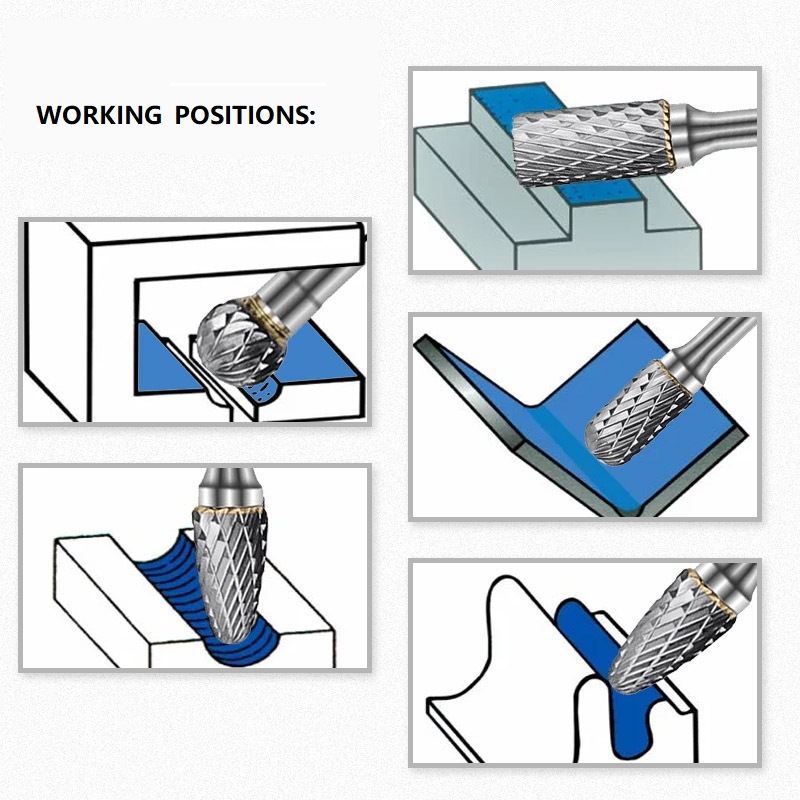

4.chamfering and rounding and processing the bore surface on machine part , cleaning the pipeline.
5 sleeking on the impeller runner part.
Main Advantage
1. can cut all kinds of metal which hardness under HRC70(include quenched steel ),and those nonmetal (marble,jade,bone).
2. can instead of samll handle granding wheel on most works,and no any dust pollution
3. high peoduction efficiency,10 times higher than manual file and samll handle grinding wheel .
4.good quality processing,highly polishing,can work on all kinds of high-precision mould cavity .
5.longer working lifetime ,on durability side ,ten times longer than high speed steel tools,200 times longer than alumina grinding wheel.
6.Safe and easy using,can reduce workers' labour intensity and improve the working condition.
7.Enhancing the economic efficiency,ten time production cost will be saving .

Diameter	Shank	Length of Flute	Length	Overall Length
2	2.35	10	38.5	55
3	3	14	38.5	55
4	3	14	45	55
6	3	16	45	65
8	6	20	45	65
10	6	20	45	65
12	6	25	45	65
14	6	25	45	65
16	6	25	45	65

Diameter	Length of Flute	Overall Length	Standard Cut
1/8"	1/2"	2"	Standard
3/16"	5/8"	2"	Standard
1/4"	5/8"	2"	Standard
1/4"	1"	2"	Standard
5/16"	3/4"	2 1/2"	Standard
3/8"	3/4"	2 1/2"	Standard
3/8"	1"	2 3/4"	Standard
7/16"	1"	2 3/4"	Standard
1/2"	1"	2 3/4"	Standard
5/8"	1"	2 3/4"	Standard
3/4"	1"	2 3/4"	Standard
1"	1"	2 3/4"	Standard
Diameter	Length of Flute	Overall Length	Double cut
1/8"	1/2"	2"	double
3/16"	5/8"	2"	double
1/4"	5/8"	2"	double
1/4"	1"	2"	double
5/16"	3/4"	2 1/2"	double
3/8"	3/4"	2 1/2"	double
3/8"	1"	2 3/4"	double
7/16"	1"	2 3/4"	double
1/2"	1"	2 3/4"	double
5/8"	1"	2 3/4"	double
3/4"	1"	2 3/4"	double
1"	1"	2 3/4"	double
